So I'm in the process of making my belt gizmo and I've moved on to the daughterboard. I was wondering if anyone had a good pic of the GB1 daughterboard. I've searched around here and the internet and I can seem to turn up much. I've got a relative size and color, that's about it. Any suggestions/help is greatly appreciated.

There are no good shots of the GB1 version, this is about the best you'll get:


GB2 is a bit easier if you don't care about accuracy, there's a shot of a stunt version in the reference section:

Well the time has come I suppose.

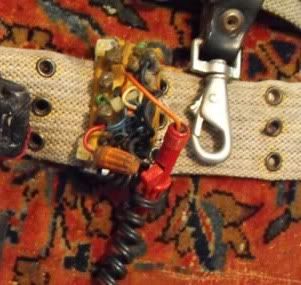

Thanks to KingGB for sharing pictures of his stunt belt gizmo.


Looks like 2 small zip ties on the side
Wires (various colors)
Orange wire nut
Red alligator clip with banana plug adapter

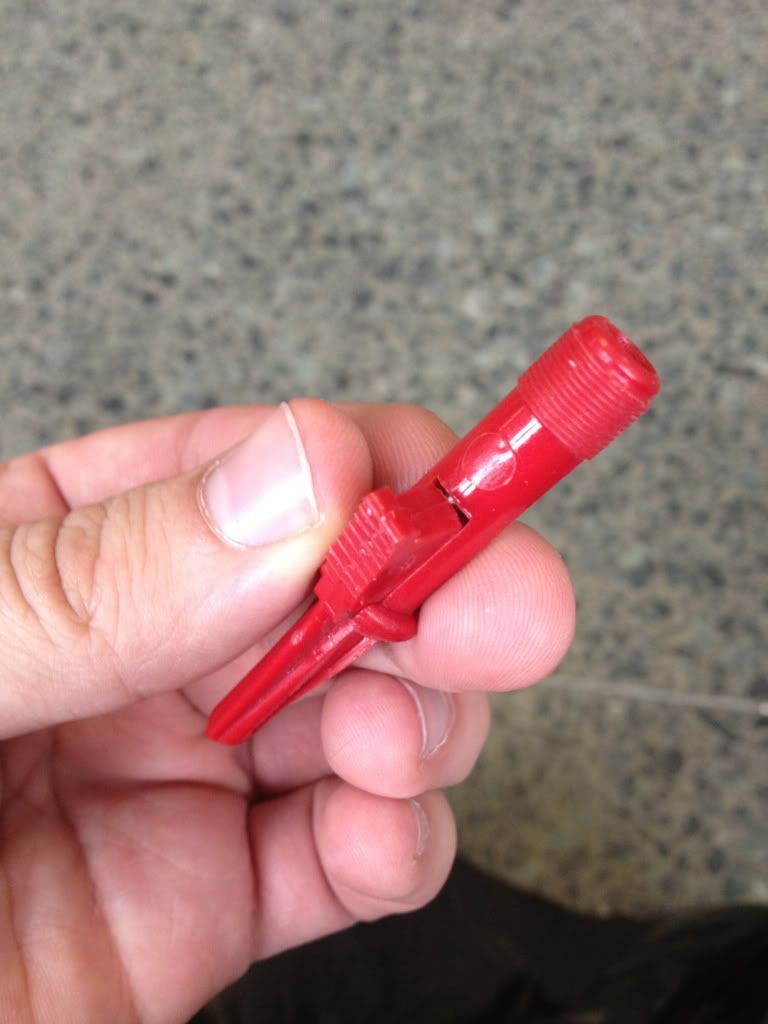

Here is a vintage one I found digging through a box at the surplus store.


There's probably some more real parts on the hero version but I'd imagine they stayed fairly consistent.
