In-Universe Function
The Proton Pack functions as a miniature cyclotron operating as a positron collider: it smashes together positrons (positively charged anti-electrons) and feeds the resulting material to the hand-held Particle Thrower (also known in scripts and promotional material as the Neutrona Wand or Proton Gun). The resulting Proton Stream, a torrent of positively charged ions, neutralizes the negatively charged electromagnetic radiation of a ghost. A held ghost can then be guided above an open Ghost Trap for capture. Invisible or intangible ghosts still carry their negative energy signature; the stream forces them back into phase with normal reality and holds them in place.
The packs are nuclear powered. Their power cells carry a half-life of 5,000 years, as Egon states before the Scoleri Brothers battle in Ghostbusters II (the radioactive isotope closest to this figure is Curium-246, with a half-life of approximately 4,730 years). Egon also warned that crossing Proton Streams would cause "total protonic reversal," theoretically destroying all life instantaneously. The Ghostbusters deliberately crossed streams to defeat Gozer in 1984 and again to drive back Garraka in 2024. A cross-stream governor safety feature was introduced in the packs as seen in Ghostbusters: The Video Game, preventing accidental crossings; this safety can be disabled for emergencies.
Pack Components
Fan-Named Parts
Very few parts of the Proton Pack were named in the original film. To help the community discuss and document the prop, a group of GBFans.com members created and agreed on a standardized set of names for every visible component. These names have since entered general usage throughout the fandom and are documented on the dedicated Proton Pack Part Names page.
Major fan-named components with their own documentation pages include:
Real World Found Parts
A number of components on the Proton Pack are "found items": real industrial parts, some still manufactured today. The GBFans.com community has identified the majority of these parts. Each has its own dedicated documentation and sourcing page:
Movie Props: Ghostbusters (1984)
The Proton Pack props were created by Columbia Pictures' prop department. According to Making Ghostbusters by Don Shay (p. 69): "the proton packs and nutrona wands were constructed in balsawood and cardboard prototype form by Steven Dane, with significant input from Ivan Reitman and Dan Aykroyd, and then turned over to Chuck Gaspar for actual construction." Dane based his rough sketches on flamethrowers he recalled from military magazines. He bought a pack frame from California Surplus, on Santa Monica and Vine, and built a rough mock-up of the backpack flamethrower concept before refining the design with Reitman. Dane guided construction and sourced some parts for the early mock-up phase.
The finished props consist of molded fiberglass shells on aluminum backplates ("motherboards") bolted to military-surplus ALICE Pack frames. The basic shape was sculpted from foam, a rubber mold was produced, and fiberglass shells were pulled from that mold. The props were finished with surplus 1960s resistors, pneumatic fittings, hoses, ribbon cable, surplus warning labels, and custom metal fittings. Harold Ramis estimated the weight of the "actual operational packs" at approximately 50 lbs in Cinefex issue 40 (1989, p. 7), noting that removing the batteries reduced that figure by close to 20 lbs. Foam-rubber "stunt" pulls from the same mold substituted for the hero props in stunt scenes.
The pack's lightbar, on the left side, houses 15 blue scrolling lights. The circular cyclotron section at the bottom has four red lights that illuminate in rotation. Hero wands featured fluorescent bargraphs, incandescent bulbs, and a strobing tip that gave the visual effects crew a reference for synchronizing the Proton Stream composites.
A common misconception holds that Ray's pack (worn by Dan Aykroyd in the Sedgewick Hotel chase) has two yellow lights beside the power cell. This is black paint worn off the fiberglass shell, allowing power cell light to bleed through the thinned area. The visual was nonetheless incorporated as an intentional design feature in Ghostbusters: The Video Game.
The packs were first deployed on the Sedgewick Hotel job, which was also the field test for the Ecto Goggles and the Ghost Trap.
Movie Props: Ghostbusters II
Several GB1 hero packs were redressed for Ghostbusters II, fitted with a black crank knob and thinner ribbon cable. On one redressed pack the gun mount pitches forward slightly due to mis-drilled holes in the fiberglass shell. Shoulder strap padding was added during production and appears inconsistently across scenes.
Additionally, one original GB1 pack was hastily cast as a buck to produce lighter "mid-grade" props. These mid-grade pieces had many details cast into the mold rather than added as separate fittings, and their electronics were substantially stripped down. Ramis quoted the mid-grade weight at approximately 28 lbs in Cinefex; these props did not light up. New foam-rubber stunt packs were made for falls. In practice, original GB1 hero packs appeared in close-ups, mid-grade props in wider shots, and stunt packs whenever actors fell.
All three GB2 variants (rubber stunt, fiberglass mid-grade, and fiberglass hero) were later displayed at Planet Hollywood restaurants across the United States. At least one rubber stunt pack and one fiberglass mid-grade pack were subsequently auctioned. The auctioned mid-grade pack was lost shortly after sale in an airport baggage mishap. The piece had been documented before its loss, revealing construction details including the shoddy casting techniques used in its fabrication.
Known Screen-Used Variants
- GB1 Hero pack
- GB1 Stunt pack (foam rubber)
- GB2 Mid-grade pack
- GB2 Hero pack Mk. II (original GB1 shell with redress)
- GB2 Stunt pack
- Universal Studios Florida pack
- Ghostbusters: Afterlife Spengler pack
- Ghostbusters: Afterlife Gunner Seat pack
- Ghostbusters: Frozen Empire pack
- Ghostbusters: Frozen Empire Upgraded pack
- Ghostbusters: Frozen Empire Stunt pack
- Ghostbusters: Frozen Empire Gunner Seat pack
- Ghostbusters: Frozen Empire brass-plated pack
Movie Props: Ghostbusters: Afterlife (2021)
For Ghostbusters: Afterlife, the original Harold Ramis hero pack from the first film was Lidar-scanned and rebuilt to millimeter accuracy. Consulting propmaster Guillaume DeLouche obtained original props from Sony Archives; The Hand Prop Room produced the new replicas. Approximately 17 molds were produced; seven complete Proton Pack props were built for the film. Hero packs were cast in aluminum housing and wired with lighting effects. Some smaller details that could not be sourced were molded, 3D-printed, cast, and remanufactured. The ALICE frames used were knock-off versions from the same manufacturing stock run as the originals, chosen for budgetary and logistical reasons. Violet Ramis-Stiel accompanied Jason Reitman and crew to Sony's archives for the scan and tried on the prop.
Re-recording mixer Will Files sourced Richard Begg's original digitized sound work tapes from Sony Archives and assembled an unused-sounds composite, then applied a Doppler effect using Sound Particles software to recreate the cyclotron startup for Phoebe's "rusty and miscalibrated" pack. The Proton Pack startup sound was the first sound design element completed for the film. Ben Eadie added a remote-control motor module inside the cyclotron prop so the startup speed could be adjusted for close-up shots.
Movie Props: Ghostbusters: Frozen Empire (2024)
Over 20 Proton Pack props were built for Ghostbusters: Frozen Empire. Eight "Upgraded Proton Pack" props were produced, each incorporating more than 20 new modifications including a redesigned Ion Arm, hazard-stripe Power Cell, tri-arm yellow bumper, reduced-profile components, and updated ALICE straps and frame padding. Four bumper options were evaluated before one was selected, painted hazard yellow, and approved by director Gil Kenan. The speed and intensity of the lighting effects could be adjusted remotely by an electrician on set during filming.
Two of the Frozen Empire packs were constructed using HasLab Spengler's Proton Pack shells as a starting point; the prop team's own shells were approximately 1.5 kg lighter than the HasLab shells, requiring careful weight matching. During pre-production, the prop department sourced some parts directly from Ghostbusters fans.
Ghostbusters: Afterlife and Frozen Empire (In Universe)
Before his death, Egon Spengler relocated to Summerville with his Proton Pack and had begun work on a second, incomplete pack in his underground laboratory. His granddaughter Phoebe Spengler discovered the unfinished pack; guided by Egon's ghost, she identified and installed two missing CRT Emitters and reassembled the cyclotron. She tested the restored pack at the Summerville Foundry on her second day in Summerville, and later used it alongside the original team to drive back and trap Gozer.
Between Afterlife and Ghostbusters: Frozen Empire, the Ghostbusters Engineer Corps developed an upgraded Proton Pack variant with a tri-arm yellow bumper and other refinements, managed at the Paranormal Research Center. Lars Pinfield narrowed stream intensification and reduced split time. The team also applied Proton Pack technology to the Ionic Separator, used to extract ghosts from possessed objects, and to Proton Fields for containment during research.
In Frozen Empire, standard Proton Streams proved ineffective against Garraka. Phoebe modified her pack by hack-sawing a section of the firehouse's brass fire pole, melting it with a blowtorch, and brass-plating components of her pack. The result was a distinctive trifurcated green Proton Stream that had a noticeable effect on Garraka, ultimately contributing to his capture in the Containment Unit.

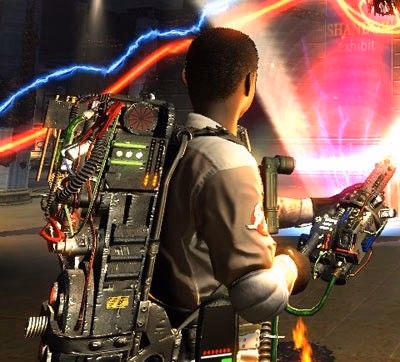

The Video Game (2009)
The Proton Packs in Ghostbusters: The Video Game (Realistic Versions for PC, PS3, and Xbox 360) are built on the GB2 pack design with additional modifications and accumulated wear. The most prominent change is the replacement of the crank knob with a vent and flashing red light used to release steam and prevent overheating. When the pack vents, the steam is shot out and the Bumper and Cyclotron push out to cool off. In a full meltdown, the pack automatically vents and ejects the four Cyclotron cores along with the Bumper and Cyclotron housing.
The Video Game pack introduces several functional indicator lights: the HGA displays a pie-chart showing the health of the ghost currently in the player's sights, while bars below it show the player's health and the pack's current temperature. A cross-stream governor safety feature prevents accidental crossing of streams; it can be deliberately disabled in emergencies, as in the final battle against Ivo Shandor.
One set of lights was chosen for the Video Game pack based on a common misconception about the GB1 prop. In the Sedgewick Hotel chase with Slimer, Ray's (Dan Aykroyd) pack appears to have two lights beside the power cell:
However, this effect is simply paint worn off the pack shell, allowing light from the power cell to bleed through. Despite this, the detail was deliberately incorporated into the Video Game pack design:
Pack Upgrades
Over the course of the game the player's pack receives upgrades: Boson Darts, Stasis Stream, Shock Blaster, Slime Blower Mk. II (also called the Plasm Distribution System), Slime Tether, Meson Collider, and Overload Pulse. Each upgrade is effective against different ghost types. Upgrades apply only to the player's character, not the other Ghostbusters. Some add-ons, such as the Slime Tether, also serve as puzzle-solving tools.
Plasm Distribution System upgrade, aka Slime Blower Mk. II
Stylized Versions
The Wii, PSP, PS2, and DS versions use a more stylized pack design:
The chief difference in gameplay is that the Slime Blower fires Slime Bombs that spread slime over an area rather than a continuous stream.
Many GBFans.com members have built Video Game pack replicas, mostly by eyeballing the in-game model and hand-fabricating parts. No formal plans have been produced for this variant due to the extensive differences from the screen-used props and the multiple platform-specific versions.
The Real Ghostbusters
The Real Ghostbusters packs retain the core concept of the film props with visible differences: they are blue with color accents, feature a three-ring Cyclotron rather than the four-light film version, and have a more rounded and simplified overall shape. A hook near the Ion Arm carries Ghost Traps rather than the belt-clip method used in the films. The wand is more streamlined but operates identically. The packs also gained a Self Destruct capability and the ability to reverse polarity.
The pack appears in modified forms across the series. The "ghost Ghostbusters" in the episode "Citizen Ghost" wear packs that feed on ectoplasmic energy with reversed polarity. In other episodes the packs were modified to operate from an external large-capacity generator for increased power output. The Real Ghostbusters packs also appear in Extreme Ghostbusters in the two-part episode "Back in the Saddle," presented in a silver metallic finish.
A few GBFans.com members have successfully built Real Ghostbusters packs. The main challenge is the absence of comprehensive plans: the pack's proportions and visible details vary between episodes, and not all angles are clearly shown. The design is fundamentally simple and achievable with patience. The Kenner Real Ghostbusters toy pack, though not screen-accurate in scale, serves as a recognized reference point for builders until better resources become available.
Extreme Ghostbusters
The Extreme Ghostbusters pack, seen only in Extreme Ghostbusters (1997), represents a substantial redesign from all prior versions. Rather than a cyclotron-based power system, this pack operates from small power cell canisters inserted into the gun before firing. It shares no components with the movie, Video Game, or Real Ghostbusters packs, which contributes to its relative obscurity among prop builders.
Member irricanian produced the primary build resource and documentation for the Extreme Ghostbusters pack, working mainly with everyday materials and rough estimates necessitated by inconsistent animation across the series. The pack can be built for under $100 in approximately one day. Member Harry Bardwell extended this work by producing detailed internal component drawings, created by working through the pack's outer covering layers and labeling what lies within. Bardwell's drawings establish a visual sense of continuity between the classic Proton Pack design and the EGB variant.
The design, limited on-screen exposure, and low pop-culture recognition of the EGB pack make it a small but meaningful corner of Ghostbusters prop-building history.
IDW Comics
In the IDW Comics series the Proton Pack has been through numerous documented modifications and custom builds. When the original Ghostbusters were each banished by Koza'Rai to different corners of time and space, each constructed a pack adapted to their era. Peter Venkman's was styled after the Old West, Ray Stantz's from Arthurian times, and Egon armed an entire military force with packs. In 1780, Leonardo da Vinci modified Janine Melnitz's pack and produced at least three additional units for a group of rookies.
Rachel Unglighter produced her own "Mega-Pack" versions using magic, claiming the upgrades eliminated the danger of crossing streams, with a blue switch added to "freeze" ghosts. Egon later removed the cooling covers from standard packs (reducing weight but apparently introducing a cancer risk) and adjusted stream potency to compensate for a prolonged ambient psychokinetic energy surge.
The "Ramis Boards" (named after Harold Ramis, as noted in Ghostbusters: Get Real Issue #3) were upgraded from a six-pin to an eight-pin configuration, giving the packs access to a wider energy spectrum. The current standard model in the IDW Comics continuity is the Mark 4.2, confirmed in Ghostbusters 101 Issue #4.
In the comics' Teenage Mutant Ninja Turtles crossover, Ray Stantz lent a spare pack to Donatello. When Chi-You possessed Winston Zeddemore, his pack was tranmogrified to resemble a turtle shell.
The Proton Pack is the most-built prop in the GBFans.com community, with active forums covering every stage of construction from scratch builds to screen-accurate hero replicas. The combination of identified real-world found parts, the community-agreed part naming system, and the availability of fiberglass shell castings has made detailed replicas accessible to builders at a wide range of skill and budget levels.
Community-produced plans are documented on the Equipment Plans page, including work by Norm Gagnon, Sean Bishop, Stefan Otto, and the Elite Proton Pack Plans. A Technical Manual consolidates reference material. The Models page documents commercially available and community-produced casting and kit options.
During production of Ghostbusters: Frozen Empire, the prop team sourced some components directly from Ghostbusters fans, and shells produced by Mack's Factory served as weight-matching references for the production's own castings.
